JERRY FB FUSION BINOCULAR SYSTEM – NIGHT VISION + 12UM 640 THERMAL

The Jerry FB (Fusion Binocular) is a binocular night vision device combining the best features of both worlds in one device using analog residual light amplifiers and a digital thermal imaging sensor. It is equipped with a new generation of night vision fusion technology, in which three-dimensional binocular imaging enables the user to detect targets more effectively and distinguish threats more quickly.

With 640×512 pixels the sensor provides optimal resolution for an increased detection range. With the external battery compartment, run times of min. 8 hours (fusion mode) to max. 60 hours (night vision mode) can be achieved. As tubes. However, other tubes can be installed on request.

The Jerry FB stands out due to its low weight of just 600g (without battery pack). Various display modes, such as target magnification and outline, allow the user to adapt the image to a wide variety of situations. The Jerry FB is operated via two switches on the top of the housing. The left one is used to activate and switch between the different thermal modes, the right one to turn the device on and off. The middle knob on the housing controls the gain or image brightness.

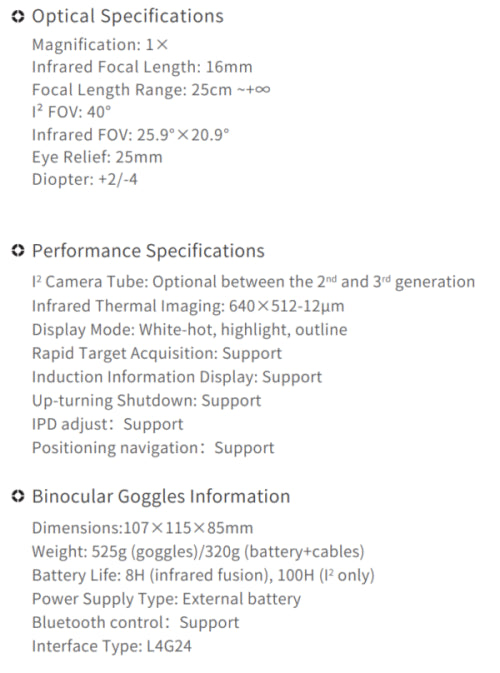

TECHNICAL SPECIFICATIONS

Field of View 40° Magnification 1x Diopter Adjustment +2/-4 Fusion Core 12 μm 640×512-12μm Thermal Modes White-Hot, Highlight, outline Eye Relief 25mm Focus Range 9.8 in to Infinity Power Source 1 Battery Pack Bluetooth Control Yes Weight 525g
