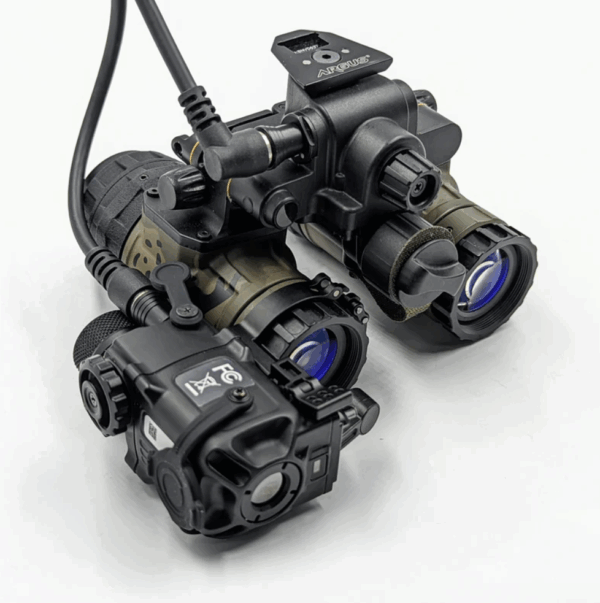

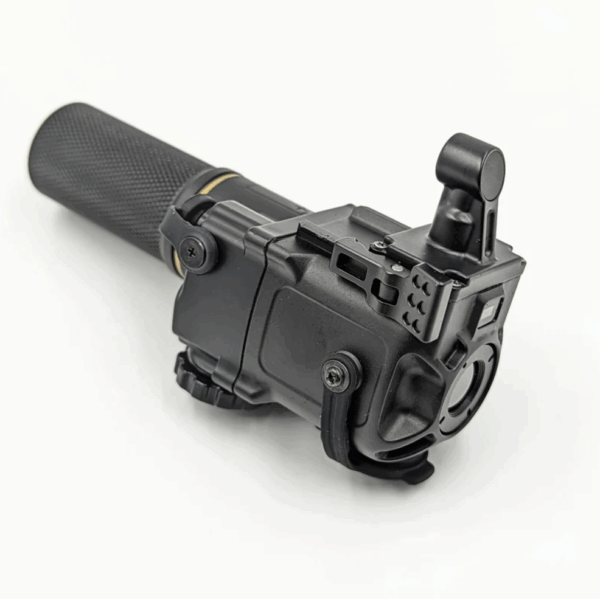

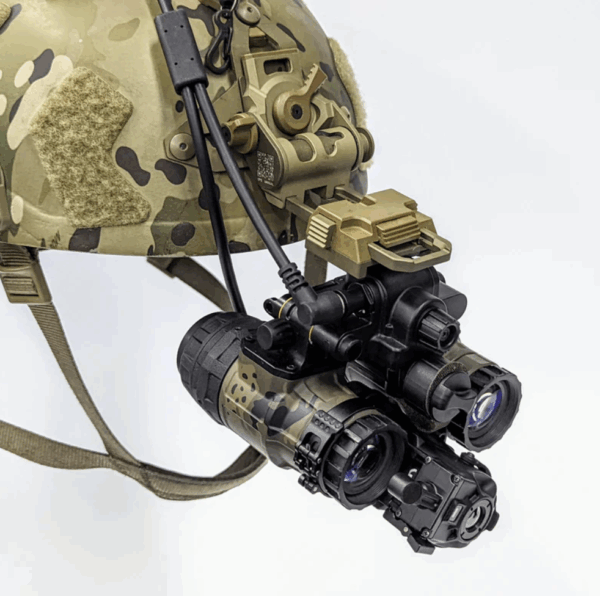

Telescope/Jerry-C5 Clip-On Thermal Imager for Night Vision Devices
To make up for the limited performance of the low light level and low illumination night vision devices under the extreme environment, Jerry-C is a thermal imaging enhancement attachment designed for the rapid upgrade, front-fusion, and the multi-mode display of equipment in service. It can enhance the user’s night perception ability to ensure the absolute tactical advantages to properly identify the potential targets. Jerry-C Clip-On Thermal Imager has removable wide-angle HD lens and multiple display modes to deliver better environment sensing performance with your night vision monocular or binocular.
- Low loading, fast installing — Ultra-light weight pendant for fast front mounting.
- Fusion display, fast recognition — Direct fitting fusion without adjustment, various modes to improve the recognition effect.
- Multiple power supply — Multiple types of batteries, external power supply. Functions on both 3.0v/3.7v to allow CR123 and rechargeable 18650 batteries, as well as external power from existing 3V battery packs.
- Multiple fitments – Fits PVS-14, BNVD-1431, Katana, and other night vision housings
Specifications
| Resolution | 640×512 |
|---|---|
| Field of View | 30.5° |
| Power Supply | Dual |
| Detector Type | Uncooled VOx infrared detector |
| Pixel Size | 12μm |
| Image Mode | White-hot/Highlight/Outline |
| Interface | External power supply/Analog video (PAL)/RS232 |
| Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C~+60°C |
| Manufacturer |
